Building a Cloud-Native PCI DSS Level 1 Architecture

How did BeautifulCode do it?

To effectively manage our compliance requirements, we first aimed to narrow down the range of system components subjected to PCI DSS audit, namely the Card Data Environment (CDE). The CDE refers to the areas of our network where cardholder data is stored, processed, or transmitted. Our strategy was to minimize the risk of exposing cardholder data, streamline the audit process, and simplify the maintenance of security for components within the PCI DSS scope.

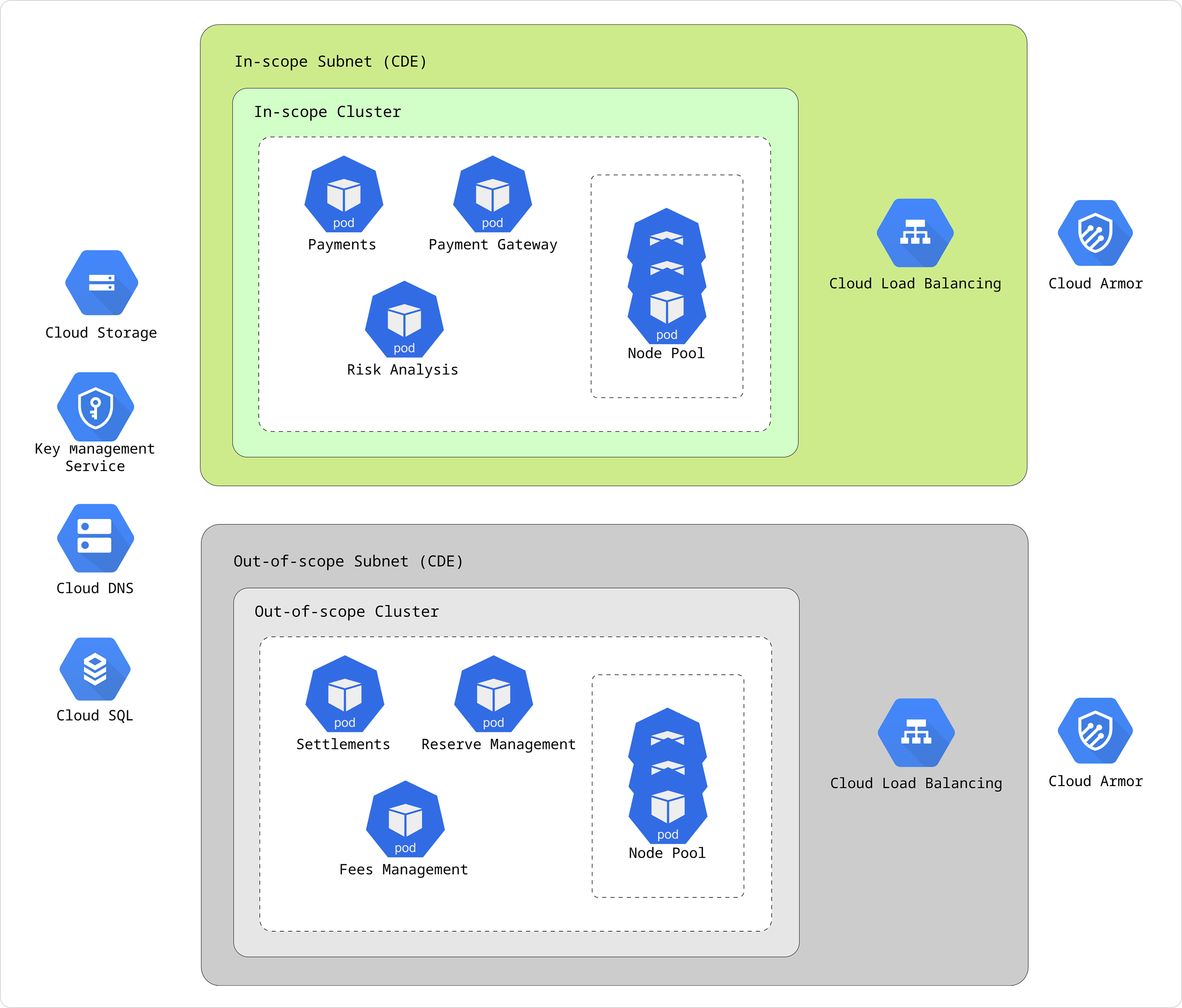

We designed the architecture by dividing services into two distinct groups:

• In-scope (CDE): services directly involved with cardholder data such as payments, risk analysis, etc.
• Out-of-scope: services not directly handling cardholder data (e.g., Settlements service, Transaction service with only masked cardholder data).

This approach allowed us to deploy these groups in their respective Kubernetes clusters and subnets, shared within a common Virtual Private Cloud (VPC).

Here are the key implementations we carried out to address each PCI DSS requirements:

Install and maintain a firewall configuration to protect cardholder data

We implemented Cloud Firewall ingress rules to block traffic on all ports except port 443, which remained open for secure SSL traffic to the app. For outgoing traffic, we established egress rules to block all outbound communication from the subnet, whitelisting only necessary traffic such as calls to the Payment Gateway, Plaid/Mx, etc., to exit the VPC subnet. Additionally, we put processes in place to require two levels of approval for any changes to the firewall rules.

We also used Cloud Armor as a Web Application Firewall (WAF) to prevent DDoS attacks, SQL injection, cross site scripting (XSS), cross site request forgery (CSRF), etc.

Do not use vendor-supplied defaults for system passwords and other security parameters

We built our Docker images using Ubuntu Alpine as the base and installed only the required packages to run our applications.

We ensured that we avoided using any default configurations and passwords provided by vendors. For example, in the case of databases, we generated database passwords using Terraform scripts and stored them as Kubernetes secrets. These secrets were loaded only into the deployments/pods that required them. This approach ensured that access to the database password was restricted solely to the pods that needed it.

Protect stored cardholder data

We removed personally identifiable information (PII), CVV, card numbers, and expiry dates from logs. The cardholder data was encrypted using Cloud Key Management before being stored in the database. Additionally, we delayed the decryption of this data until absolutely necessary, such as just before making a call to the Payment Gateway for processing a transaction. We also rotated the encryption keys every three months, re encrypting all the cardholder data with the new keys.

Our strict data retention policy mandated the deletion of all cardholder data if a user chose to remove their card from the system.

Wherever possible, we conducted various operations on the cardholder data by using either the masked value or a one way hashed value of the card number, employing strong one way hashing algorithms like SHA-512.

We also ensured that the CVV was not stored in any form, including logs, databases, or files.

Encrypt transmission of cardholder data across open, public networks

We have implemented HTTPS and TLS 1.2 to ensure encryption of all incoming traffic. Additionally, we ve utilized Istio service mesh to secure all service to service communications using mutual TLS (mTLS).

Protect all systems against malware and regularly update anti-virus software or programs

We have installed specialized antivirus software on all our Linux and macOS systems to comply with the PCI DSS requirement for protection against malware. This software is regularly updated to guard against the latest malware threats. Additionally, we consistently update our operating systems and applications to address any security vulnerabilities.

Develop and maintain secure systems and applications

We utilized Container Analysis to scan Docker images for known vulnerabilities and promptly addressed them. Additionally, we implemented cloud functions to detect any newly discovered vulnerabilities in previously scanned Docker images.

Our developers regularly participated in training sessions focused on OWASP Secure Coding Practices. We also integrated the static code analyzer Brakeman into our Continuous Integration (CI) process, which analyzes the code for security vulnerabilities.

We maintain separate environments for development, staging, and production. Access to these environments was managed using Cloud IAM, ensuring appropriate and secure access controls.

Restrict access to cardholder data by business need to know

Access to the production environment was restricted to only the lead developer and the client s product management team. We established Google groups and assigned the minimum necessary permissions for task execution. Users were added to these groups based on their roles.

To minimize the need for direct infrastructure access from local systems, we implemented a Continuous Deployment (CD) process using Cloud Run, forcing the use of GCP tools to access the infrastructure.

Identify and authenticate access to system components

Using Cloud IAM, we enforced security measures including 2FA, strong password policies, account locking after multiple incorrect password attempts, setting user session times, and establishing password reset and rotation processes. Additionally, we implemented procedures for locking user emails upon termination.

Restrict physical access to cardholder data

Google is responsible for physical security controls on all Google data centers underlying Google Cloud.

Track and monitor all access to network resources and cardholder data

We utilized the Audit Log for monitoring all access to network resources and employed Cloud Logging to collect and centralize all application logs in the Logs Dashboard

Regularly test security systems and processes

We utilized JIRA to schedule tickets for recurring activities such as Internal Penetration Testing (IPT), External Penetration Testing (EPT), scanning by Approved Scanning Vendors (ASV), Segmentation Penetration Testing (SPT), Internal Vulnerability Testing (IVT), and Application Penetration Testing (APT).

These activities were conducted with the assistance of internal teams, external teams, and Qualified Security Assessors (QSA). In cases where issues were identified during these activities, we created Priority 0 (P0) tickets and swiftly addressed the resolutions.

Maintain a policy that addresses information security for all personnel

We had kept all our information security policies and related documentation up to date on Confluence.
